[Ground-station] UI for SDR

[Douglas Quagliana]

I was thinking of a GUI that shows the stations, ground stations, and
satellites
with their footprints on a worldmap as well as the RF waterfall for that
station
and some statistics for the signals to and from that station.  Sort of an
APRS-meets-SDRSharp-with-networking-links look.

You could click on a station on a worldmap and get details about the
traffic to
and from that station and their stats.

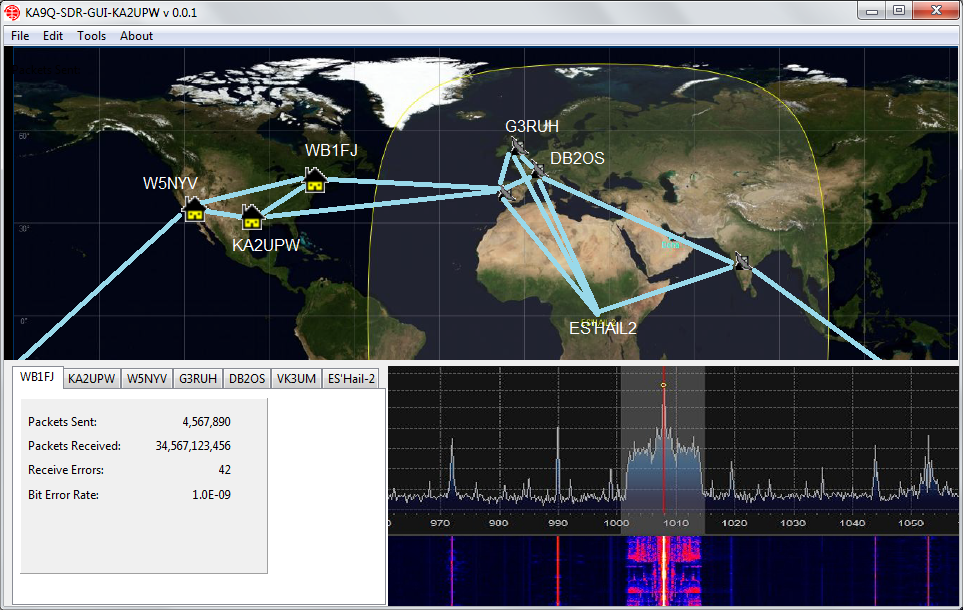

Here's a screenshot for my idea of what the SDRGUI looks like, attached as
a PNG
(KA9Q-SDR-GUI-KA2UPW-Screenshot.PNG), from the "Artifacts from future"
category.

Let me know what you think. Comments?
73,
Douglas KA2UPW/5



On Fri, Jun 29, 2018 at 11:09 AM, Michelle Thompson <
mountain.michelle at gmail.com> wrote:

> I like the constellation/EVM/DR/BER/FER metering presentation.
>
> My feeling about wideband digital visual representation is that any really
> good wideband digital waveform should look like noise. Or a bart's head.
> Seems kind of boring, especially if it's always in the same place or near
> the same place. The excitement of a panadapter/waterfall display is that
> the narrowband signals are often hunted down and there's a wide variety in
> they way they look.
>
> -Michelle W5NYV
>
> "Potestatem obscuri lateris nescis."
>
>
> On Thu, Jun 28, 2018 at 9:38 PM, Drew Arnett <arnett.drew at gmail.com>
> wrote:
>
>> Prototype until you get it right?
>>
>> WB dig?  Constellation.  EVM meter.  Data rate meter.  BER/FER meter.
>> WB dig still looks OK on waterfall, no?
>>
>> On Thu, Jun 28, 2018 at 3:14 PM, Michelle Thompson via Ground-Station
>> <ground-station at lists.openresearch.institute> wrote:
>> > Douglas (and all),
>> >
>> > What are your thoughts on a UI design for IP multicast-based SDR?
>> >
>> > The distributed and flexible nature would seem to be something that
>> should
>> > come through.
>> >
>> > I think there's broad agreement about panadapter+waterfall being the
>> very
>> > best UI for narrowband signals of any type.
>> >
>> > Is there something as compelling for wideband digital?
>> >
>> > Network graphs and module activity and active IP addresses and RTP
>> status
>> > could all be in the mix.
>> >
>> > Is there an emergent idea, preferably an improvement over existing UI
>> > designs, that we can bring out with a prototype UI?
>> >
>> >
>> >
>> > _______________________________________________
>> > Ground-Station mailing list
>> > Ground-Station at lists.openresearch.institute
>> > http://lists.openresearch.institute/mailman/listinfo/ground-station
>> >
>>
>
>
